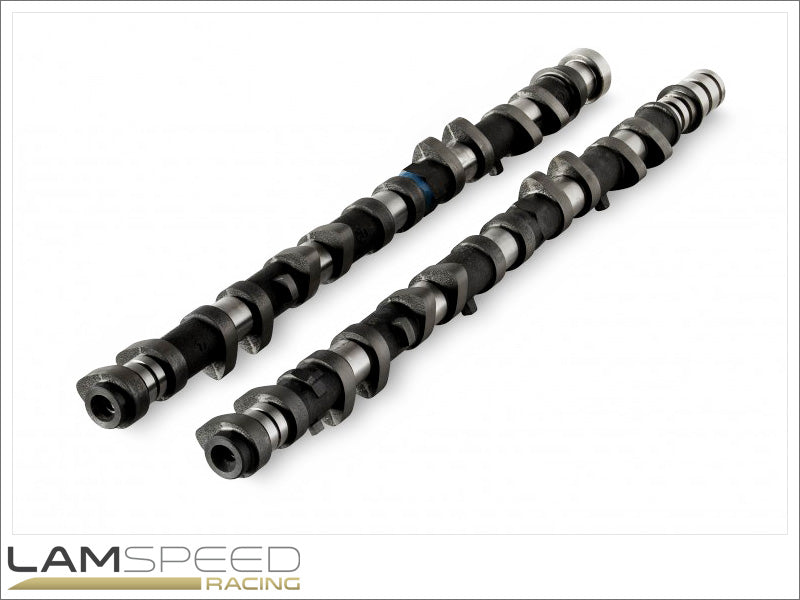

Kelford Cams - Camshaft Sets - Toyota 2JZ-GTE VVTi
Variant SKU: V202-A
$1,313.55
$1,313.55
Tax included.
Shipping calculated at checkout.
Kelford Cams - Camshaft Sets - Toyota 2JZ-GTE VVTi
Details:
The Kelford range of cams for the Toyota 2JZ-GTE VVTi engine, are designed to run with the stock cam bucket with shim on top.
For engines that have shimless or shim under cam bucket valve train conversions, we have an endless range of profile designs available so please contact us to discuss your requirements.
Camshaft Profiles & Technical Specifications
(Click on Camshaft Set or + for Technical Specifications)
V202-A Camshaft Set:
- 248/248 Degrees advertised duration. 8.70mm/8.70mm lift.
- To suit Toyota Supra / 2JZ VVTi.
- High performance street cams for a near stock engine.
- Suits up to 30 lb boost and 7500 RPM with our recommended valve spring.
- Will also drop in on stock spring.
Technical Specifications
Valve Clearance:
| Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM |
| Cam Lift: | Intake: | 8.95mm | Exhaust: | 8.95mm | |
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |
| Nett Valve Lift: | Intake: | 8.70mm | Exhaust: | 8.70mm | |
| Advertised Duration @ | 0.10mm | Intake: | 248 | Exhaust: | 248 |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 210 | Exhaust: | 210 |
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 41 BBDC | |
| IVC: | EVC: | 11 BTDC | |||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | |
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.26mm |
V202-B Camshaft Set:
- 260/260 Degrees advertised duration. 9.35mm/9.35mm lift.
- To suit Toyota Supra / 2JZ VVTi.
- Street performance cams to suit turbo and ECU upgrade.
- Suits up to 30 lb boost and 7500 RPM with our recommended valve spring.
- Will also drop in on stock spring.
Technical Specifications
Valve Clearance:
| Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM |
| Cam Lift: | Intake: | 9.60mm | Exhaust: | 9.60mm | |
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |
| Nett Valve Lift: | Intake: | 9.35mm | Exhaust: | 9.35mm | |
| Advertised Duration @ | 0.10mm | Intake: | 260 | Exhaust: | 260 |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 |
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 50 BBDC | |
| IVC: | EVC: | 8 BTDC | |||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | |
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.26mm |
V202-C Camshaft Set:
- 264/272 Degrees advertised duration. 9.65mm/9.65mm lift.
- To suit Toyota Supra / 2JZ VVTi.
- 264/272 Degree street / strip or track day cams for good response and midrange power.
- Suits up to 30lb boost and 8000 RPM with our recommended valve spring.
- Requires valve spring upgrade KVS02
Technical Specifications
Valve Clearance:
| Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM |
| Cam Lift: | Intake: | 9.90mm | Exhaust: | 9.90mm | |
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |
| Nett Valve Lift: | Intake: | 9.65mm | Exhaust: | 9.65mm | |
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 272 |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 232 |
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 52 BBDC | |
| IVC: | EVC: | 0 TDC | |||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | |
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.94mm |
V202-D Camshaft Set:
- 272/278 Degrees advertised duration. 9.95mm/9.95mm lift.
- To suit Supra / 2JZ VVTi.
- 272/278 Degree racing cams.
- These are our most popular cam specifications for a vast range of motorsport applications.
- Requires valve spring upgrade, KVS02-BT
Technical Specifications
Valve Clearance:
| Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM |
| Cam Lift: | Intake: | 10.20mm | Exhaust: | 10.20mm | |
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |
| Nett Valve Lift: | Intake: | 9.95mm | Exhaust: | 9.95mm | |
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 278 |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 240 |
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 60 BBDC | |
| IVC: | EVC: | 0 TDC | |||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 120 | |
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.94mm |
