Emtron GT86/BRZ/FR-S ECU - Plug and Play

Emtron GT86/BRZ/FR-S ECU - Plug and Play

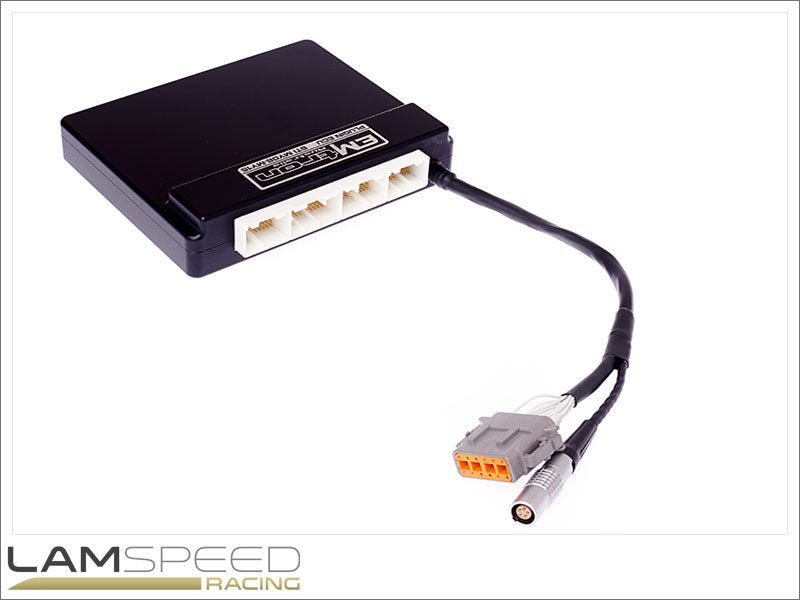

The EMtron GT86/BRZ/FR-S Plugin ECU is a plug and play solution capable of managing Toyota/Subaru/Scion GT86/BRZ/FR-S's flat four configuration engine that employs a combination of four (4) direct injectors and four (4) port injectors for fuel.

Features:

• 6061 Grade Aluminum CNC Billet Enclosure
• KV ECU based platform
• High Speed Ethernet Communications
• Compatible with all Emtron Proven Motorsport features
• Full CAN Bus OEM Integration
• VSC compatible – User programmable
• Torque Management to replicate OEM – User programmable
• Upgradeable to run the Emtron Fuel model through installation of a Flex Meter, Fuel Temperature and Fuel Pressure Sensor
• Input Expansion Capabilities through DTM connector
• 3 Spare Analog Volt Inputs (using expansion port)
• 1 Spare Digital Input
• 1 Spare Aux Output
• 2 x CAN Buses (OEM and Expansion Connector for external devices)

NOTE: For 2017 Models you will need to relocate C7 to the DTM 12 connector to either ANV8,9 or 10 as a pull-up is required to function correctly

Once purchased please contact us VIA Email to receive the Engine Decode & VVT Mid lock File.
