Lamspeed Racing - Race Spec High Output Alternator - Mitsubishi Evo 4-9 - 200 Amp
Variant SKU: LSR-EVO4-9200ALT
$1,295.00
$1,295.00
Tax included.
Shipping calculated at checkout.
Lamspeed Racing - Race Spec High Output Alternator - Mitsubishi Evo 4-9 - 200 Amp
Details:

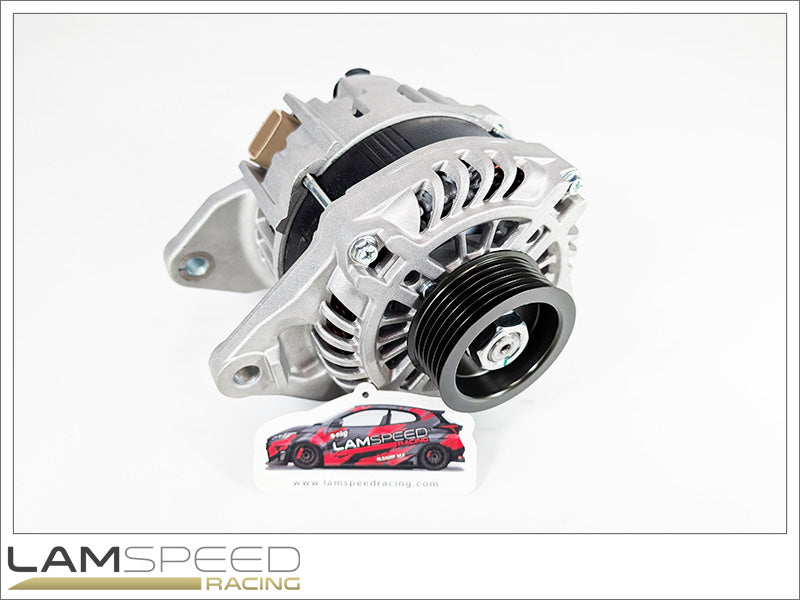

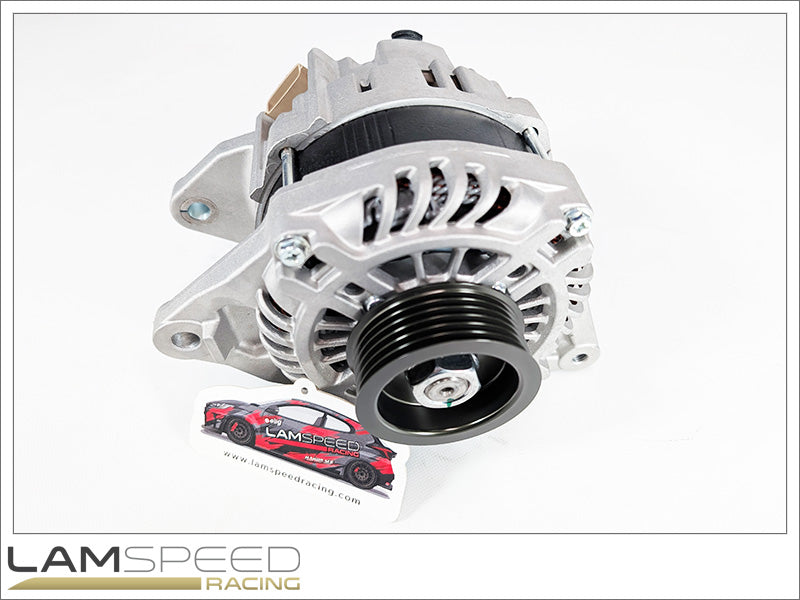

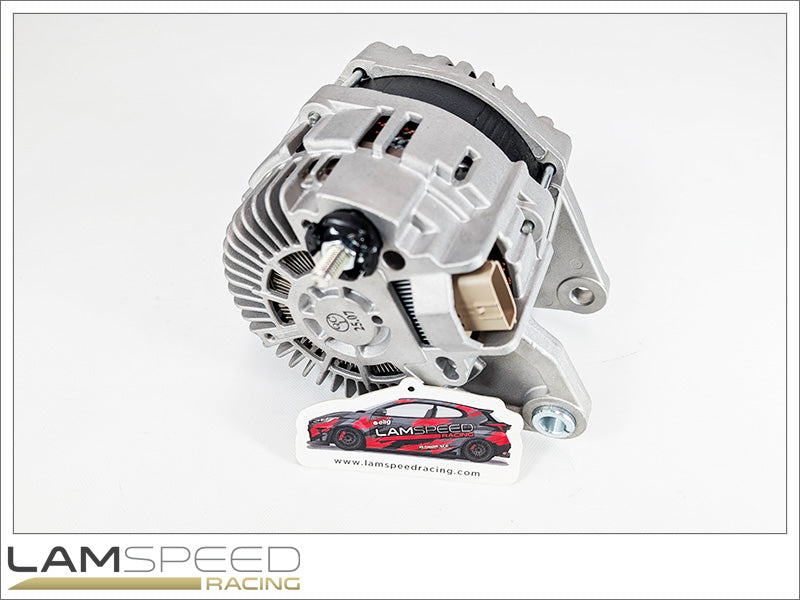

Lamspeed Racing Race Spec 200 AMP High Output Alternator for Mitsubishi Lancer Evolution 4, 5, 6, 7, 8 & 9.
Features:
- Rated at 200 Amps
- Direct fitment for Mitsubishi 4G63 engines in Evo 4, 5, 6, 7, 8 & 9. No modifications needed.
Test Results:
- Maximum Alternator Output: 200 Amps
- Maximum Output Power: 2519 Watts
- Voltage Set Point: 14.34 Volts
- Leakage Current: 0.39 mAmps
- Ripple Current: 9 Amps
- Alternator Turn On Speed: 1350 RPM
- Regulator Activation Speed: 977 RPM
- Secondary Regulation: 14.35 Volts
- LRC Delay: 2.00 Sec.
- Feedback (Full Load): 4.69 Volts
- Feedback (Minimum Load): 12.32 Volts
Highly recommended to upgrade the wiring to 12.1mm O.D. No under drive pulley is required. We have designed this for race purposes with no additional modifications needed.
Our Lamspeed Racing race spec 200 AMP high output alternator has been tested on some of the World's fastest evos making 1500hp and reving to 11,500rpm!
