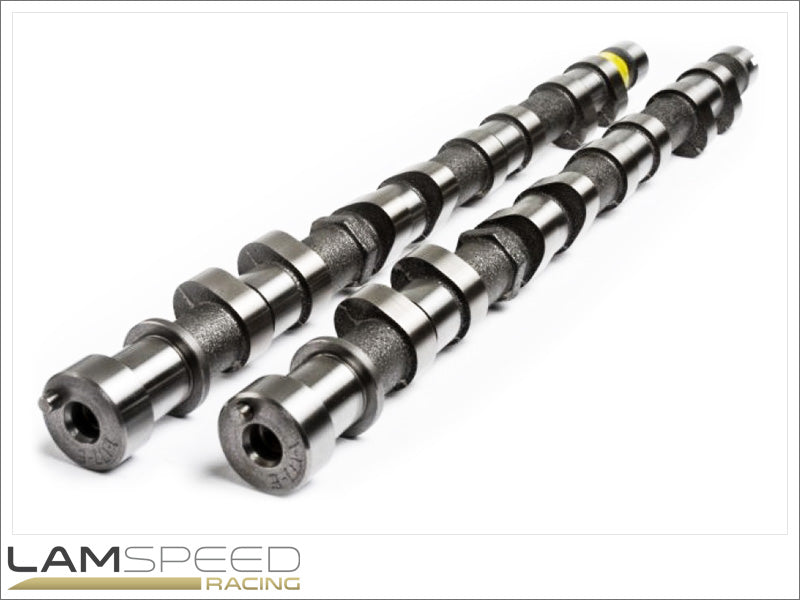

High Performance 258/264 Degree, 10.50mm lift Cams for the Mitsubishi EVO 1-3 & VR4 4G63

The Kelford Cams range of camshafts for Mitsubishi 4G63 DOHC engines are renowned worldwide for their superior results. This range is for the first generation of the DOHC 4G63T, from the VR4 Galant through to the Evolution 3. All of the camshafts in this range are ground on our Toyoda CNC masterless cam grinder to consistently deliver the highest quality product.

Our 'TX' range of camshafts for Mitsubishi 4G63 DOHC engines have the best available lobe designs, featuring low seat timing and maximum valve area while retaining perfect valve control at high RPM. Every cam in the range features the same lobe design as our mega popular 272 degree camshaft which cleaned out the competition in the AMS Import Tuner back-to-back cam test.

We have developed a proven range of camshafts for this engine to suit most applications, including a low lift 272 degree cam to suit stock valve springs and high lift designs for the more serious applications.

However, if you can't find your perfect camshaft within our range, designing custom profiles is our specialty! Simply order the custom camshaft and provide us all the details of your build. Confidential development for race teams is also available.

Camshaft Profile

1-TX258 Camshaft Set:

  • 258/264 Degree advertised duration, 10.50mm lift cams.
  • Cams for fast street engines with stock or small turbocharger, or restrictor plate rally engines up to 8000 RPM and 25lb boost with our recommended valve springs.

Technical Specifications

Valve Clearance:

Intake: Set at the
Exhaust: Set at the

Cam Lift: Intake: 6.07mm Exhaust: 6.07mm
Rocker Ratio: Intake: 1.73 Exhaust: 1.73
Nett Valve Lift: Intake: 10.50mm Exhaust: 10.50mm
Advertised Duration @ 0.10mm Intake: 258 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 208 Exhaust: 220
Timing @ 1.00mm VALVE LIFT IVO: 3 ATDC EVO: 41 BBDC
IVC: 31 ABDC EVC: 1 BTDC
Suggested Centre Lines: Intake: 107 Exhaust: 111
VALVE Lift @ TDC Intake: 0.81mm Exhaust: 0.96mm
