Lamspeed Racing Motorsport Direct Injector Fuel Pressure Sensor - Toyota G16E-GTS 2020+ GR Yaris / 2023+ GR Corolla
Variant SKU: LSR-G16DIFPS
Lamspeed Racing Motorsport Direct Injector Fuel Pressure Sensor - Toyota G16E-GTS 2020+ GR Yaris / 2023+ GR Corolla
Details:
Lamspeed Racing Motorsport Direct Injector Fuel Pressure Sensor - Toyota G16E-GTS 2020+ GR Yaris / 2023+ GR Corolla
We have had the factory direct injector fuel pressure sensor fail on numourous occassions whilst on the race track.
Our kit includes a machined fitting that utilizes the factory sensor O ring and tension washer that fits into the factory location. The sensor is a Bosch Motorsport 420bar (6091 PSI) sensor which screws into the fitting.
Designed and developed with Armour Motorsports.
Only suitable for aftermarket ECUs such as MoTeC or Syvecs. Calibration is a must.

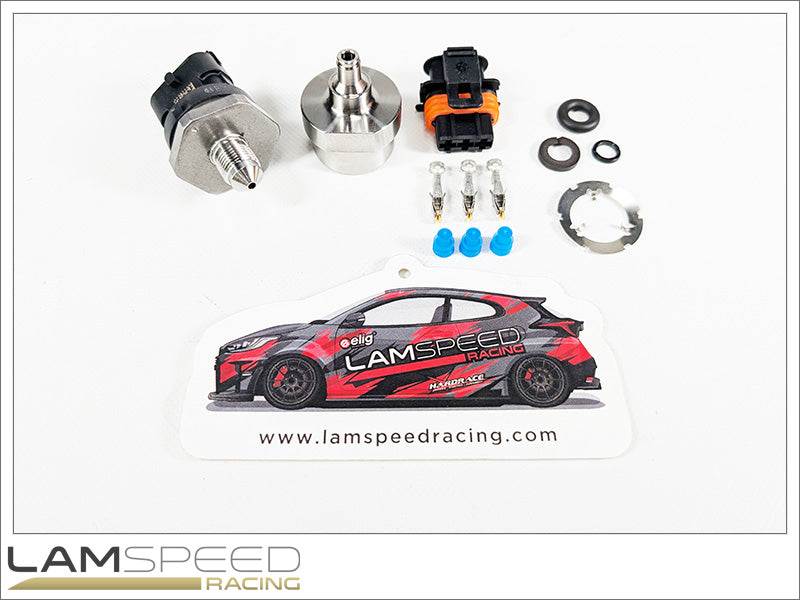

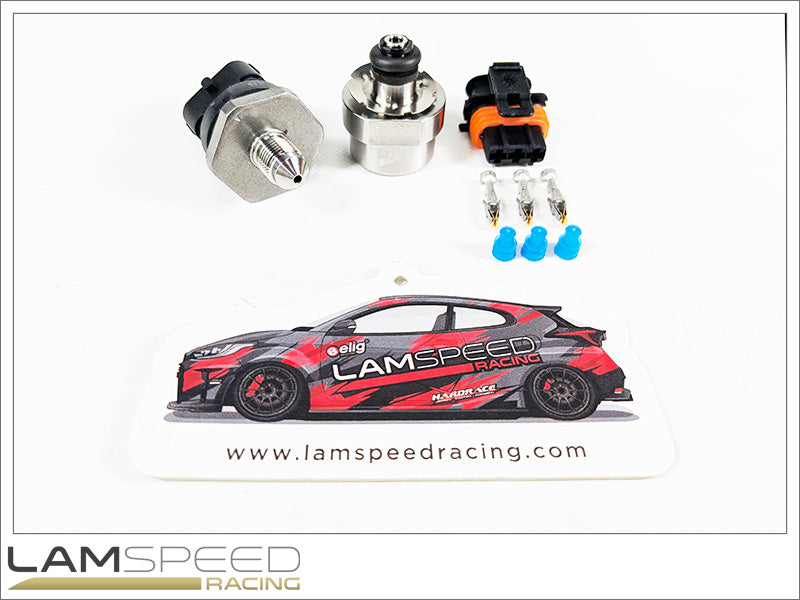

Included in the Kit:
- Lamspeed Racing Fuel Pressure Sensor Fitting
- Bosch Motorsports 420 BAR Fuel Pressure Sensor
- Bosch Motorsports Fuel Pressure Sensor Plug
- Viton O Ring
Notes: Must use the supplied Viton O ring along with the OEM tension washer, bakerlight and plastic spacer that you can remove from the OEM sensor (Not supplied). (See in photos). Wiring is needed. Do not over torque sensor onto fitting!
